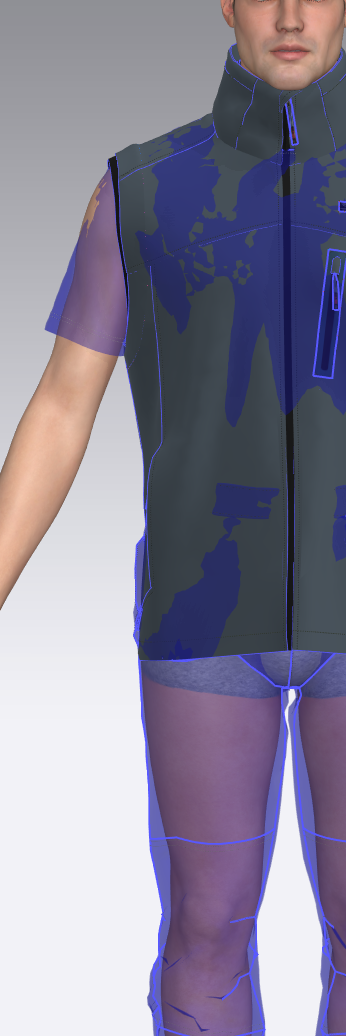

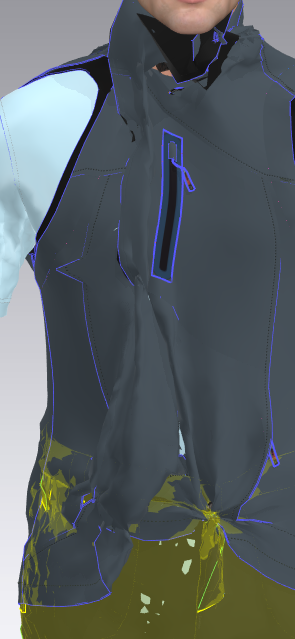

I have a big Simulation chaos when placing several garments on top of each other. Even though I am using the layer numbering, the freezing tool and the pattern deactivation tools. The top placed garment grabs the garment below and grabs itself especially at the CF zipper. Can I place it in a distance to the below garments until simulation has finished? Or is there any other mistake I do or an advice for me? many thanks
Pattern deactivation will tell MD that those pattern pieces have no effect on any other pieces. That is not something you want when running a sim of multiple layered garments. The other pattern pieces will move to the inside of a deactivated pattern piece(s).
Additionally, turn all the layers back to zero when you are ready for them to fully interact with one another. It is helpful in short sessions to 'teach' the garments where they should be in relation to the other garments, but when they all need to interact, they need to have as little 'distraction' as possible during the sim's calculation cycle.
