Objective

Add and organize Puckering style and apply it to the Buttons in the scene.

Location

Object Browser ▶ Puckering Style Tab (ver. 2025.0)

Main Menu ▶ Window ▶ Object Browser ▶ Puckering Style Tab (ver. 2025.0)

Operation

Open Asset Library

1. Open the Asset Library tab in Location.
2. Select the Asset Library icon    to open the default location for Puckering assets in the New Library Window.

Add New Puckering Style & Apply

1. Select the tool/menu indicated.

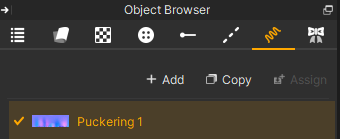

2. Click "+Add" in the Object Browser.
   Or add a Puckering file (.PTP) by dragging it to the Puckering tab or on the Puckering asset.
   → A Puckering style is added.

Copy Puckering Style & Apply

1. Click Copy at the top right.
   → A Puckering style is duplicated.
2. Replace an existing Puckering Style and apply it.
   Or after selecting the Puckering  first, click the Assign button to the right of the Puckering style.
   → The Puckering Style is replaced.

Assign New Puckering Style

1. Select 1 or more existing Puckering assets in either the 2D window with the Edit Puckering Tool.

2. While selected: go to the Puckering Style Tab
3. Select the Assign New Puckering Style option to assign and generate a New Puckering Style (.PTP) to all selected Puckering assets.
