Objective
Quickly view and navigate between existing assets in the 3D scene.
Location

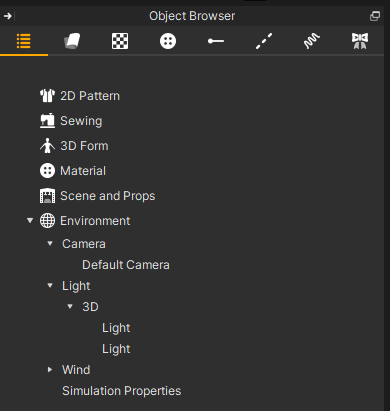

Object Browser ▶ Scene Tab
Main Menu ▶ Window ▶ Object Browser ▶ Scene Tab
Right-click "Browser" Title Bar ▶ Object Browser ▶ Scene Tab
Operation
Double click and expand the groups to easily change names and quickly get to the specific property editor where applicable.
| 2D Pattern |
Expand to view all pattern assets in the scene. |
|
| Sewing |
Expand to view all sewing relationships in the scene. Double clicking asset's name to change the name (Also found with Edit Sewing tool ▶ Sewing Relationship/ Seam ▶ Property Editor ▶ Name) |
|
|
3D Form |
Lists the Hierarchy of each imported asset including the Joints and mesh assets. Double-click on each of the names to change them, or change the name in the Property Editor. |
|
| Material |
Any Style Groups (aside from Fabric) Graphic, Buttons, Buttonholes, Topstitching, Puckering and Trims will populate here. Double-click on each of the names to change the individual asset's name. This also opens up the individual Asset's Property Editor options (to change the Style information (such as trim weight) please go to the Style window for that Style group) |
|
| Scene and Props |
Lists the Hierarchy of each imported scene asset. Double-click the asset name to change the name and open the individual asset's Property Editor. |
|
| Environment | Camera |
Shows the name of Existing cameras in the scene. By Default there is 1 camera. Double-click the asset name to change the name and open the Camera Property Editor |
| Light |
Lists the Hierarchy of each imported Light asset. Double-click the asset name to change the name and open the individual asset's Property Editor. |
|
| Wind |
View the existing wind controller assets in the scene. Double-click the asset name to change the name and open the individual asset's Property Editor. |
|
| Simulation Properties |
Opens the World Simulation properties. Find more info on the options here. |
|
※ Note: Selecting the names in this window does NOT highlight the selected assets in the 2D/3D windows.
