Objective

Manage Trims as a shape or style in the Trim Window. It is possible to create, copy, apply, and set a style in the Trim list window.

Location

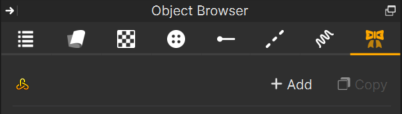

Object Browser ▶ Trim (Ver. 2025.0)

Main Menu ▶ Object Browser ▶ Trim (Ver. 2025.0)

Operation

Open Asset Library

1. Open the Asset Library tab in Location.
2. Select the Asset Library icon    to open the default location for Puckering assets in the New Library Window.

Add & Apply one or more Trim Styles

1. Click Add at the top right to load a file to use as Trim.

    or Main Menu ▶ File ▶ Import and import a file (.trm, .obj, .zip, .fbx, .gltf, .glb)  In the popup window, choose Object Type as Trim.

    or drag and drop a file (from Library or File Explorer) directly to the Trim Style Window.

→ A Trim style is added.

2. Drag the style from the Trim window to the 3D window, apply it, and Glue.

Copy Trim Style & Apply

1. Click Copy at the top right in the Trim Style window.
   → A Trim style is duplicated.
2. Drag onto an existing Trim Style and apply it.
   Or after selecting the Trim Style first, click the Assign button to the right of the Trim style.
   → The Trim Style is replaced.

Change Trim Styles

1. Use the Select/Move tool to select a trim in the 3D window.

2. Click the Assign button to the right of the trim style name.

    Or drag and drop a Trim style onto the trim you've selected.

    →  The selected Trim's style has been changed.

3. Right-click on Trim to Delete / Delete all Unused Trims / Rename (Ver. 2025.0).

※ Note:

• The default file format for Trim in Marvelous Designer is .TRM file.  Other supported file formats for importing Object Types as trim include .OBJ, .FBX, and .USD.
