Objective

Add and organize Buttonhole style and apply it to the Buttonholes in the scene.

Location

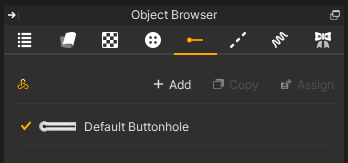

Object Browser ▶ Buttonhole Style Tab (ver. 2025.0)
Main Menu ▶ Window ▶ Object Browser ▶ Buttonhole Style Tab (ver. 2025.0)

Operation

Open Asset Library

1. Open the Asset Library tab in Location.
2. Select the Asset Library icon to open the default location for Buttonhole assets in the New Library Window.

Add New Buttonhole Style & Apply

1. Select the tool/menu indicated.
2. Click +Add at the top right.
   Or add a Buttonhole file by dragging it to the Buttonhole Style tab or on the Buttonhole asset.
   → A Buttonhole style is added.

Copy Buttonhole Style & Apply

1. Click Copy at the top right.
   → A Buttonhole style is duplicated.
2. Replace an existing Buttonhole Style and apply it.
   Or after selecting a Buttonhole first, click the Assign Buttonhole to the right of the Buttonhole style.
   → The Buttonhole Style is replaced.

Assign New Buttonhole Style

1. Select 1 or more existing Buttonholes in either the 3D window with the Select tool [Q] or in the 2D window with the select tool or Button/Buttonhole Select/move tool
2. While selected: go to the Buttonhole Style Tab
3. Select the Assign New Buttonhole option to generate and apply the New Buttonhole Style to all selected buttonhole assets.
