Quick Pinching
Advanced Pinching
Quick Pinching
Objective
While the Simulation is active, the Select/Move Tool (Q) changes to the Pinch Tool. (Ver. 2025.0)
Quick Pinch acts like the Select/Move tool from previous versions during simulation.
Location
Quick Pinching (Q): While the Simulation is active
3D Tool Bar ▶ Drop-Down Menu ▶ Quick Pinching (Ver. 2025.0)
Advanced Pinching
Objective
Select the Advanced Pinching Tool from the Drop-Down Menu to access the Advanced Pinching Settings during Simulation. (ver. 2025.0)
Location
Advanced Pinching: While the Simulation is active

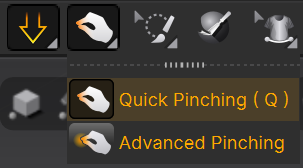

3D Tool Bar ▶ Drop-Down Menu ▶ Advanced Pinching (Ver. 2025.0)
Edit the Advanced Pinching Settings for the Pinching function during Simulation.
Location
While Simulation is Active
3D Tool Bar ▶ Advanced Pinching ▶ Drop-Down Menu (Ver. 2025.0)
3D Background Context Menu (Right-click 3D background) ▶ Advanced Pinching (Shift + E) (ver. 2024.0)
Operation (2025.0)
- Load a garment into the scene.
- Activate Simulation and select the Select/Move Tool ( Q ).
- (With simulation active) Select Advanced Pinching from the Location above.
- The Advanced Pinch Settings dialog window will pop up (see images below)
- In the Option section, adjust the following tool options to your preference:
Operation (up to ver. 2024.2)
- Load a garment into the scene.
- Activate Simulation and select the Select/Move Tool ( Q ).
- (With simulation active) Right-click the background in the 3D Window to bring up the 3D Background Context Menu.
- Run the Advanced Pinch (Shift + E) option.
- The Advanced Pinch Settings dialog window will pop up (see images below)
- In the Option section, adjust the following tool options to your preference:
| Range | The shape graph reflects the selected Falloff(Shape * Distance * Power) and cannot be manipulated directly. | ||
| Falloff Shape |
Select the Falloff Shape: Bump or Linear
|
||
| Falloff Distance |
Set the distance of the selection range to the radius: Min/max: 1-500(mm)
|
||
| Falloff Power |
A value that sets the strength of falloff. Min:-2.0 Max:+2.0
|
||
|
Options |
Distance Measure |
How the distance from the picking point is measured. |
|
|
Surface |
When multiple layers of patterns are together, only one independent layer will be selected. |
||
|
Straight |
Select all patterns within a certain distance from the picking point regardless of the layer selected. |
||
| Distance Indicator |
Indicates the Falloff Distance/Power values using 2 concentric circles around the pinch icon. When turned off the circles will disappear.
|
||
| Limit to Selected Patterns |
When selected only one pattern will be affected regardless of whether the Distance Measure is Surface or Straight. |
||
| Display Weights |
Displays a contrasting color to the mesh where the weight value is applied. |
||
Modify the Range and Option values and freely pinch the materials.
