Objective

Create and manage Modular Configurator categories and folders.

Location

Modular Mode ▶ Vertical Menu Tab on the Left ▶ Modular Configurator

Operation

Create Folders

1. Follow the indicated guideline below:

Modular Mode ▶ Vertical Menu Tab on the Left ▶ Modular Configurator

→Modular Configurator window appears.

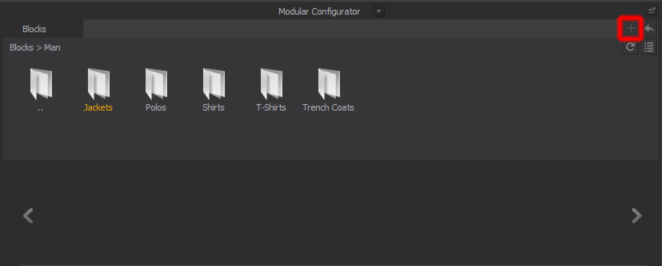

2. Click on the (+) icon at top-right corner of the Configurator.
→Open Category window appears.

3. Select a folder.
→ The selected folder appears in the Configurator.

Rename Folders

1. Follow the indicated guideline below:

Modular Mode ▶ Vertical Menu Tab on the Left ▶ Modular Configurator

→Modular Configurator window appears.

2. Right click on the tab and click Rename.
→ Rename window appears.

3. Rename folders.

Delete Folders

1. Follow the indicated guideline below:

Modular Mode ▶ Vertical Menu Tab on the Left ▶ Modular Configurator

→Modular Configurator window appears.

2. Right click on the name of the category tab to delete.
→ The category is now being deleted.

※ Note: The Block files belong to the according category also gets deleted.

Configurator Window Options
