Objective

Place graphic images on Patterns. Use this function to express Garment details such as placed prints, embroideries, or logos.

Location

Main Menu ▶ Materials ▶ Graphics ▶ Graphic (2D Pattern) / Graphic (3D Pattern)

3D or 2D Toolbar ▶ Graphic.png Graphic (2D Pattern) / Graphic (3D Pattern)

Operation

1. Follow the indicated guideline below:

   Main Menu ▶ Materials ▶ Graphics ▶ Graphic (2D Pattern) or Graphic (3D Pattern)

   2D or 3D Toolbar ▶ Graphic.png Graphic (2D Pattern) or Graphic (3D Pattern)



2. The file browser appears.
   → Select a graphic image file and load.



3. Click on a Pattern where the graphic image should be placed.

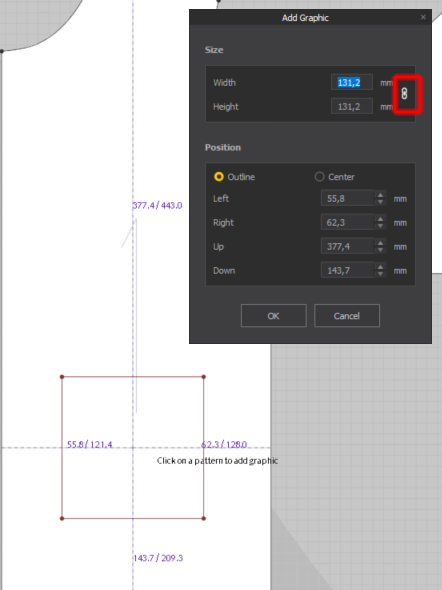

   → The Add Graphic window appears.


4. Enter the desired values for the graphic dimensions and position:


   Width		Set the width of the graphic image.
   Height		Set the height of the graphic image.
   		Link or unlink the aspect ratio of the graphic image.
   Position	Outline	Set the distance from the left, right, top, or bottom of the graphic outline to the pattern outline. This menu only appears when placing the graphic in the 2D window (Ver. 2.5.0).
   	Center	Set the distance from the center of the graphic to the left, right, top, or bottom of the pattern outline. This menu only appears when placing the graphic in the 2D window (Ver. 2.5.0).




5.  Click OK to place the graphic image.

※ Note:

• Add graphics directly by right-clicking on a thumbnail of an image file in the Library window, then select Add as Graphic from the pop-up menu (ver2.4.0).
• When importing an AI file with multiple artboards as a graphic, the AI/PDF window appears where artboards can be reviewed and the desired artboard can be selected (Ver. 4.0.0).
• PBR maps for Displacement, Opacity, Roughness, and Metalness channel can be automatically generated for the applied graphic image using PBR Map Generator (ver. 2024.1)
