1. Follow the path indicated in Location above.
2. When a Topology tool selected, patterns will be displayed as transparent.
   → When you place the mouse cursor over a pattern, the pattern is highlighted in its original color.

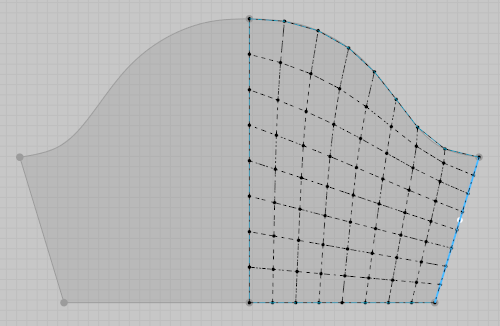

   → New topology can only be created on one pattern at a time.
3. Click on the highlighted pattern to add a topology point.
   → Topology can be created in both the 2D and 3D Windows, though we recommend using the 2D Window primarily.

   Creating Face
   → When creating Topology lines, a Topology face is created if a closed shape is drawn.

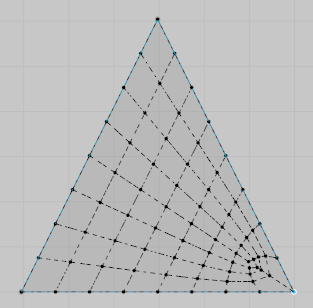

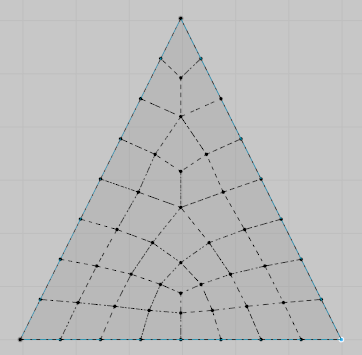

   → Topology faces are created only on shapes with 3 or 4 points/sides.
   → To stop drawing Topology before closing a shape (leaving an open shape), double-click to finish.

   Cancel point creation
   → Cancel points one-by-one by pressing Delete/Backspace Key on the keyboard.
   → Cancel all points: Press ESC, Ctl + Z Key on the keyboard.

   Add Division Loop
   → While hovering over an edge with the Create Topology Tool, press Shift + Ctrl and click to add an edge loop across continuous faces.

Additional Operation (Above Ver.12)

Cut Topology Faces
→ Existing blue topology faces can be split by drawing new Topology Points/Edges across them.
→ If cut faces result in Ngons, any blue topology faces with more than 4 sides will be highlighted in orange.
